12 meter fiberglass pole
12-meter/40-foot Telopole
TeleScoping Poles
Fiberglass
TeleScoping Poles

These TeleScoping Poles are suitable for any application to manipulate equipment at distance, including: utilities, landscaping, police, fire and rescue personnel to place climbing lines, cable ladders or other special use items or equipment in places up to 15 meters above ground (or sea) level.

Made with high strength fiberglass, H series poles are exceptionally light weight, the longest 15 meter pole weighing less than 9 lbs.  Each segment extends about five feet, with every other segment able to double lock with the previous, allowing poles to be used fully locked at less than maximum length.

Heavier HV-series 12 meter poles weigh little more than 15 lbs.  HV tubing is triangular, preventing individual segments from rotating within each other and therefore keeping the segment buttons always lined up with the button holes.  However, segments do not double lock.

The poles may be used with a variety of implements and hooks fastened to the universal mount on the top segment, a toothed-ring with a wing nut screw (see below).  The "T-hook" tool standard with HV-series consists of a small hook on one side and a straight pin on the other.

A variety of special pole tools are available including:  tree pruner, teflon coated pruning saw, crescent skinning knife, 5x7 mirror, ball peen hammer head, vise grip head, paint brush, screw driver, light alloy hack saw, and various rachet wrenches.

Custom fitting tools or miniature electronic devices may be designed for possible use to fasten to the universal mount, or in substitution of the final tube segment by special request.

Made of dielectric fiberglass, new poles are rated resistant electrical flow to 100kV rms. All pole segments are easily disassembled for maintenance, cleaning or repair.

See Tripod System for special use with 40-ft TeleScoping Poles.

Also available are poles designed for lamp bulb installation and removal, measurement sticks for accurate overhead measurements, as well as retriever poles for easy installation of wires and cables.

Maximum length of pole manageable by an individual with good physical strength is limited to 10 meters (30 feet)*.  This is due to the nature of relative weight of the far end of the pole at distance.  Beyond 10 meters is beyond the reasonable limits of an individual's personal strength and ability to control the hook-end of the pole.

When a pole extended more than 10 meters is to be used, it is required to have the assistance of additional persons and use of counterweight on pole base is recommended.

.
See  Warnings & Utilization Notes and Pole Utilization Errata

HV-series, Aluminum, Carbon Fiber, Pole Tools, Lamp Changers, Range Poles, Measurement Sticks, Tripod System, J-Lock™ Mast,
Order
.

Segment
Over Extended
H series  Fiberglass TeleScoping Poles
Full Length Wt. Collapsed
Length
Segments Base Tube
Diameter
Part no. Price (US$)
9 ft
Compact
2.6 lbs 31 in 6 1.75 in H9c 215.
15 ft 3.2 lbs 68 in 3 1.32 in H15 230.
20 ft 4.3 lbs 69 in 4 1.46 in H20 280.
25 ft 5.3 lbs 70 in 5 1.60 in H25 350.
20 ft
Heavy Duty
4.7 lbs 69 in 4 1.75 in H20HVY 320.
30 ft *
Heavy Duty
7.1 lbs 72 in 6 2.00 in H30HVY 490.
30 ft * 6.4 lbs 72 in 6 1.75 in H30 430.
40 ft * 8.6 lbs 74 in 8 2.00 in H40 600.
50 ft *‡ 10.8 lbs. 76 in 10 2.28 in H50 790.
All Prices plus shipping, not including any applicable taxes, duties or tariffs.
‡ when production available, not in stock

Tip end segment is 1.0 inch diameter for all standard poles, 1.3 inch HVY poles.
Other segments are various diameters, bright yellow, hollow core.

Alteration of any segment voids material certifications.
Materials:  Fiberglass tubing, Locks: machined round black NYLON button w spring,
End-tip Fitting: machined Aluminum Universal Mount w brass wing screw.  See optional Special Tools
made in USA, by GeoData Systems Management Inc.
.
Order



Segment Button Lock
(alternate segments double-lock together)

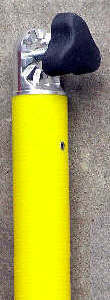

Universal Mount w Thumbscrew
See optional Special Tools.

Heavy Duty Rubber Boot

H series

H20HVY

H series, Aluminum, Carbon Fiber, Pole Tools, Lamp Changers, Range Poles, Measurement Sticks, Tripod System, J-Lock™ Mast,
Order
.
HV-208 click to enlarge
compact
HV-208
HV-series Telopole-II
Full Length Wt. Collapsed
Length
Segments Base Tube Diameter Part no. Price (US$)
8 ft Compact 3 lbs 26 in 5 1.75 in HV-208 225.
12 ft Compact 4.5 lbs 36 in 5 1.75 in HV-312 260.
8.5 ft 2.75 lbs 56 in 2 1.30 in HV-209 190.
12 ft 3.7 lbs 58 in 3 1.45 in HV-212 240.
16 ft 5 lbs 60 in 4 1.61 in HV-216 280.
20 ft 6.4 lbs 62 in 5 1.75 in HV-220 340.
25 ft 9 lbs 64 in 6 1.91 in HV-225 410.
30 ft * 11 lbs 66 in 7 2.07 in HV-230 480.
35 ft * 13 lbs 68 in 8 2.22 in HV-235 580.
40 ft * 15.3 lbs. 69 in 9 2.38 in HV-240 670.
All Prices plus shipping, not including any applicable taxes, duties or tariffs.

Tip end segment is 1.14-inch diameter, florescent green, sealed, foam core filled.
Other segments are various diameters, bright yellow, hollow core.
All sections are tested per OSHA, ASTM F-711, IEC-855 & IEC-1235.
Alteration of any segment voids material certifications.
Materials:  Fiberglass tubing, Locks: red plastic button w spring,
End-tip Fitting: Cast Aluminum Mount w steel wing screw, Standard Fitting Tool:  T-hook
Made in USA, by Hastings, Inc.
.
Order
.

Segment Button Lock
HV Segment Button Lock
Tip End Segment
HV Universal Mount w Thumbscrew
& T-hook Tool (standard w HV)

HV-pole
Cross Section
Triangular
Tubing

HV-series
Telopole-II

H series, HV-series, Aluminum, Carbon Fiber, Pole Tools, Lamp Changers, Range Poles, Measurement Sticks, Tripod System, J-Lock™ Mast
Order
.
Cinch Straps
Size
Small (1.3" dia)
Medium (2.5" dia)
Large (3.8" dia)
us$19.95
Vinyl Storage Cases
part no. Pole type Price (us$)
C80 H15 to H50 32.
C-208 HV-208 25.
C-212 HV-312 28.
C-30 HV-212 to HV-220 34.
C-40 HV-225 to HV-240 41.
Storage Canister Kits
part no. Pole type Price (us$)
01-3200-P 4½-inch dia Kit 168.
01-3300-P 6¼-inch dia Kit 208.
01-3400-P 6 5/8-inch dia Kit 214.
01-3200-25-P Extra Bracket (4½-inch) 64.
01-3300-25-P Extra Bracket (6¼-inch) 77.
01-3400-25-P Extra Bracket (6 5/8-inch) 84.
.

Premium Storage Canister Kit

Pole Storage Canister
Lockable, O-Ring seals, permanent mounting
.
Premium Aluminum alloy KITS consists of lid assembly,
end cap, (2) heavy duty mounting brackets,
adhesive, fasteners & instructions.
  • for use with 4½ inch OD standard PVC  01-3200-P
  • for use with 6¼ inch OD standard PVC  01-3300-P
  • for use with 6 5/8 inch OD standard PVC  01-3400-P

  • H series, HV-series, Aluminum, Carbon Fiber, Pole Tools, Lamp Changers, Range Poles, Measurement Sticks, Tripod System, J-Lock™ Mast
    Order.
    .
    * Utilization Notes:
    • Maximum extension for use by an individual is 30-feet
    • Always extend small end segments first, only to the limit of extension needed at the time.
    • Always use care not to pinch fingers using button locks.
    • Extension of pole may bind as approaching full extension.  This is reduced if top end is leaned against something such as a tree during vertical extension, or when horizontally extending if pole ends are held up by other persons.
    • Pole may be extended or collapsed either horizontally or vertically.  Use care collapsing vertically not to let collapsing segments slam buttons or pinch fingers.
    • Horizontal extending and raising to vertical is difficult, always use care.
    • Lowering pole from vertical to horizontal is dangerous, always use great care and two persons: one holding the base and one walking down the length of the pole as it is lowered.
    • Pole will be damaged if crashed to ground (this is guaranteed and not covered by warranty).
    • Always use at least two persons to control a pole if using fully extended.  Very Long Pole is impossible to raise from the ground when fully extended by an individual, therefore it will be impossible for an individual to control the pole if fully extended. It will crash to the ground.
    • Use of Counterweight at the Base of the pole helps improve control of any very long pole fully extended.  Counterweights are REQUIRED for any pole 30-ft long or more.
    Pole Base Counterweights
    10 Lbs
    10 Lb Weight Set, (2) 5Lb
    us$24.95
    20 Lbs
    20 Lb Weight Set, (2) 5Lb + (1) 10Lb
    us$49.95
    .
    WARNING
    Pole strength and durability are unknown.  However, manufacturer evaluations indicate impressive resistance to pole failure with nominal loads in hook end.  Poles are capable of being raised and lowered from horizontal to vertical while fully extended, without danger of pole failure or excessive bending.  See Utilization Notes above.

    When a pole extended more than 30-feet (10 meters) is to be used, it is required to have the assistance of additional persons
    and use of counterweight on pole base is REQUIRED.
    See Pole Utilization Errata.

    DANGER
    Not recommended for use in the vicinity of electrical power, power lines or any other potentially electrical environment without proper additional safeguards, precautions and special personnel safety training.
    * Distributor & Manufacturer assume no personnel liabilities what-so-ever in the use of these poles.
    End user assumes full responsibility for any hazards, injury or deaths which may result from any proper or improper utilization of these poles.
    INFO Fiberglass Poles
    For further information, Email  or Call 1-440-888-4749 (M-F 9-5 EST)
