TeleScoping Range Poles & GPS Poles

2111

Surveyor's Fiberglass Range Poles
&
very tall TeleScoping GPS Antenna Poles
.
Goto Range Pole Prices, GPS Poles

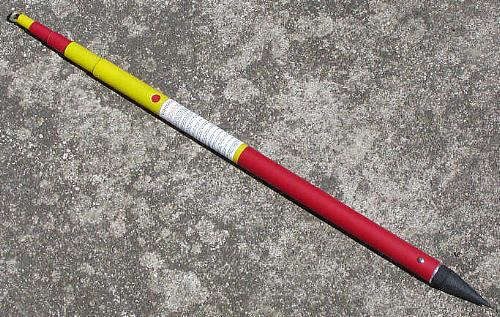

22-foot
Fiberglass
TeleScoping
Range Pole (2111)

alternating red and yellow bands spaced every 12 inches the entire length of the pole.

Weighs less than five pounds. Lightweight and non-conductive, made with high-strength dielectric fiberglass with Epoxy Resin coating. Poles feature positive locking, spring-loaded buttons for fast and easy extension. Resistant to conduction of electricity.

Yellow bands are the native color of the Hastings dielectric fiberglass. Red bands are UV-resistant FLEXcon exterior grade vinyl with solvent based water-proof adhesive. Color combination is specifically designed for high contrast in extreme lighting conditions.

Tip section is equipped with a brass eyelet for attaching ribbon, flag, or Mini Flasher™ strobe light (model 2130).

Base is fitted with a 5/8-inch x 11 thread with a standard SECO steel point.

Storage case available.

Made of dielectric fiberglass, raw poles are rated resistant electical flow to 100kV rms. Finished poles with point, eyelet and stripes are not tested.

Similar Metric Range Pole (2111M) available by special order. Email for further information.

Fiberglass
Range Pole Sets

Fiberglass
Range Poles Sets (RPS)

alternating red and yellow bands spaced every 12 inches the length of each 1¼-inch pole section.

Each 4-foot interchangeable section snaps together with a button lock.

Available in sets 8, 12 or 16-feet in length. Set storage cases available.

Each set weighs less than five pounds. Lightweight and non-conductive, made with high-strength dielectric fiberglass with Epoxy Resin coating. Poles feature positive locking, spring-loaded buttons for fast and easy extension. Resistant to conduction of electricity.

Eyelet Tip piece is equipped with a brass eyelet for attaching ribbon, flag, or Mini Flasher™ strobe light (model 2130).

Base is fitted with a 5/8-inch x 11 thread with a standard SECO steel point.

Made of dielectric fiberglass, raw pole segments are rated resistant electical flow to 100kV rms. Finished poles with point, eyelet and stripes are not tested.

Range Poles, GPS Poles
See Warnings & Utilization Notes and Pole Utilization Errata
Telopole-II, Stealth T-Lock™, Carbon Fiber, LampChanger, Measurement Sticks, Tripod System, Retriever Poles, Order

TeleScoping
Fiberglass Range Poles

Full Length	wt.	Collapsed Length	Increment	Segments	part no.	Price (US$)
22 ft	3.5 lbs	65 inches	1-foot	5 Telescoping	2111	329.
6.6 m	1.6 kg	165 centimeters	½-meter	5 Telescoping	2111M	329.

.
Fiberglass Range Pole Sets (RPS)

Full Length	wt.	Collapsed Length	Increment	Sections	part no.	Price (US$)
8 ft	3 lbs	52 inches each	1-foot	2	RPS-08	195.
12 ft	4.4 lbs	52 inches each	1-foot	3	RPS-12	272.
16 ft	5.8 lbs	52 inches each	1-foot	4	RPS-16	349.
RPS Sections & Parts Separately
4 ft	1.4 lbs	52 inches	1-foot	Section (only)	546-4R	78.
4 ft	1.5 lbs	52 inches	1-foot	Base Section (only)	552-4R	86.
4 inches	0.5 lbs	-	-	Eyelet Tip (only)	A14017+	24.
4 inches	0.5 lbs	-	-	Universal Mount Tip (only)	A10012	42.
4 inches	0.5 lbs	-	-	Steel Point (only)	5190-00	11.

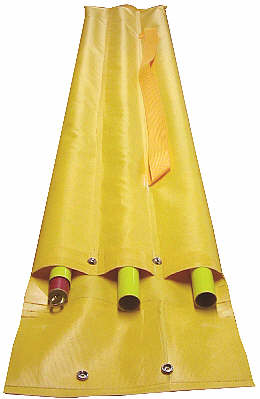

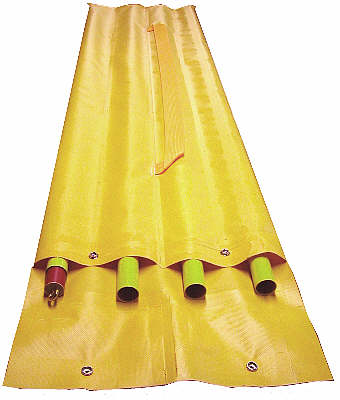

Storage Cases

Pole type	part no.	Price (us$)
2111, 2111M	C-30	32.
RPS (1-pocket)	C-414	27.
RPS-08 (2-pockets)	C-424	41.
RPS-12 (3-pockets)	C-434	44.
RPS-16 (4-pockets)	C-444	48.

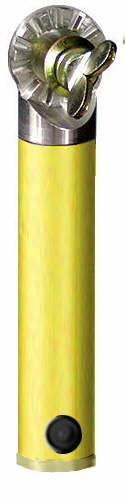

Universal Mount
for RPS Poles
us$42.

.
Order.
.
Subject to mfg. availability; prices subject to change.
All prices above for USA product in US$. Plus shipping and applicable taxes, duties or tariffs.
OH resident's will be charged sales tax, recipients must pay any other applicable taxes, duties or tariffs.
All fiberglass sections are tested at manufacture per OSHA, ASTM F-711, IEC-855 & IEC-1235.

Range Poles, GPS Pole Prices
See Warnings & Utilization Notes and Pole Utilization Errata
Telopole-II, Stealth T-Lock™, Carbon Fiber, LampChanger, Measurement Sticks, Tripod System, Retriever Poles, Order

40-ft fiberglass GPS pole
at full extension shown in
Tripod Gimbal System

Fiberglass
TeleScoping
GPS Antenna Pole

5/8-inch x 11 thread mount at top for standard GPS antennae.

Poles display English (EVG) or Metric (MVG) mensurations for antenna height as extended. Useful in elevation of antenna in areas of tree cover or urban canyons where reception of satellite signals is impaired.

Lightweight and non-conductive made with high-strength dielectric fiberglass with Epoxy Resin coating, poles feature positive locking, spring-loaded buttons for fast and easy extension. Rated resistant to electrical flow up to 100kV.

Also compatible with a variety of tip-end attachments, see Special Tools.

Storage case available.

40-ft poles (EVG-40, or MVG-40) may be used with Tripod Gimbal System . †

30-ft aluminum T-Lock™ GPS pole
at full extemsion shown in
Tripod Gimbal System

Aluminum
T-Lock™
TeleScoping
GPS Antenna Pole

5/8-inch x 11 thread mount at top for standard GPS antennae.

Most rigid very long poles available.

Made with lightweight drawn aluminum, with all metal machined locks pressed into tubing. Useful in elevation of antenna in areas of tree cover or urban canyons where reception of satellite signals is impaired.

Caution:
Aluminum is highly conductive in any electric environment.

Storage case available.

30-ft pole (T-LOCK30/4GPS) may be used with Tripod Gimbal System. †

Free standing very long poles of any material are flexible. The longer the pole, the more flexible. For accurate results when using very long poles, multiple readings should be taken and then averaged.
Poles require counterweight (*) added at base for stability during use. Amount of counerweight depends on length of pole and weight of GPS antenna.

Range Poles, GPS Poles
See Warnings & Utilization Notes and Pole Utilization Errata
Telopole-II, Stealth T-Lock™, Carbon Fiber, LampChanger, Measurement Sticks, Tripod System, Retriever Poles, Order

Fiberglass
TeleScoping
GPS Antenna Poles

Full Length	wt.	Collapsed Length	English (ft) part no.	Metric (m) part no.	Price (US$)
15 ft	2.75 lbs	67½ in	EG-15	-	330.
25 ft 7.5 m	9 lbs 4.1kg	64 in 1.6m	EVG-25	MVG-25	420.
30 ft * 9.0 m	11 lbs 6.4kg	66 in 1.7m	EVG-30	MVG-30	490.
35 ft * 10.5 m	13 lbs 5.9kg	68 in 1.72m	EVG-35	MVG-35	580.
40 ft * 12 m	15.3 lbs 7.0kg	69 in 1.75m	EVG-40 †	MVG-40 †	660.
Accessories

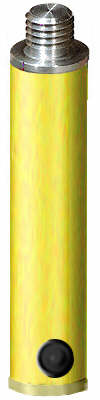

Thread Mount (only)	1 lb .5 kg	AGPS	EG, EVG & MVG poles		49.
Vinyl Storage Case	1 lb .5 kg	C-40	EG-15, EVG-25 to 40, MVG-25 to 40		39.

EG,EVG,EV=English (ft) mensurations,
MVG,MV=Metric (m) mensurations

Aluminum
T-Lock™ TeleScoping
GPS Antenna Pole

Full Length	wt.	Collapsed Length	part no.	Price (US$)
15.5 ft	5 lbs	97 in	T-LOCK15/2GPS	230.
25 ft	8.6 lbs	100 in	T-LOCK23/3GPS	330.
30.5 ft *	13.2 lbs	103 in	T-LOCK30/4GPS †	530.
38 ft *	18.8 lbs	106 in	T-LOCK38/5GPS	630.
Padded Nylon Storage Case	2 lbs	108 in	TLOCKBAG	99.

5/8 x 11 thread mount,
NO mensurations on Aluminum poles
.
.

10 Lb Set
Counterweights
us$24.⁹⁵

20 Lb Set Counterweights
us$49.⁹⁵

SECO heavyduty
fiberglass Tripod
(separately)
us$235.

.
.* Maximum length of pole manageable by an individual with good physical strength is limited to 30 feet (10 meters). This is due to the nature of relative weight of the far end of the pole at distance. Beyond 30 feet is beyond the reasonable limits of an individual's personal strength and ability to control the hook-end of the pole. When a pole extended more than 30 feet is to be used, it is required to use counterweights at the pole base and to have the assistance of additional persons.
Order
.
Subject to mfg. availability; prices subject to change.
All prices above for USA product in US$. Plus shipping and applicable taxes, duties or tariffs.
OH resident's will be charged sales tax, recipients must pay any other applicable taxes, duties or tariffs.
All fiberglass sections are tested at manufacture per OSHA, ASTM F-711, IEC-855 & IEC-1235.

Range Poles, GPS Poles
Telopole-II, Stealth T-Lock™, Carbon Fiber, LampChanger, Measurement Sticks, Tripod System, Retriever Poles, Order

WARNING

Pole strength and durability are unknown. However, manufacturer evaluations indicate impressive resistance to pole failure with nominal loads in hook end. Poles are capable of being raised and lowered from horizontal to vertical while fully extended, without danger of pole failure or excessive bending. See Utilization Notes.

When a pole extended more than 30-feet (10 meters) is to be used, it is required to have the assistance of additional persons and use of counterweight on pole base is recommended.

DANGER

Not recommended for use in the vicinity of electrical power, power lines or any other potentially electrical environment without proper additional safeguards, precautions and special personnel safety training.

Manufactured by GeoData Systems Management Inc.,
fiberglass tubing manufactured by Hastings, Inc.

Manufacturer and Distributors assume no personnel liabilities what-so-ever in the use of these poles. End user assumes full responsibility for any hazards, injury or deaths which may result from any proper or improper utilization of these poles.

For further information, Email or Call 1-440-888-4749 (M-F 9-5 EST)
