Global Solar® Technologies
PowerFLEX™
SunLINQ™
High Performance Flexible Solar Panels
PowerFLEX
Durable, lightweight and flexible solar panels designed to maintain and charge 12 volt battery systems and power most low voltage portable electronics. Versatile construction and choice of mounting options make the PowerFLEX™ SunLINQ™ panels  ideal for all types of marine, RV and outdoor applications.

  • Durable: made of extremely flexible and durable CIGS solar cells, a material proven to be very stable and long-lived, even when subjected to the rigors of extreme radiation in space.
  • Lightweight: Easily install multiple panels when you need more power (plug’n’play side connectors facilitate panel-to-panel installation).
  • Offers a higher efficiency than other flexible solar cell technologies.
  • Works under cloudy / rainy skies.
  • Will flex to fit most curved surfaces.
  • Lightweight, Durable, Weatherproof and UV resistant.
  • Commercial SunLINQin BLACK
  • Miltiary PowerFLEXDesert or Woodland  camouflage (Mil-Spec 810)
SL-25
USB mini
SunLINQ USB-mini
USB plus
SunLINQ USB-plus

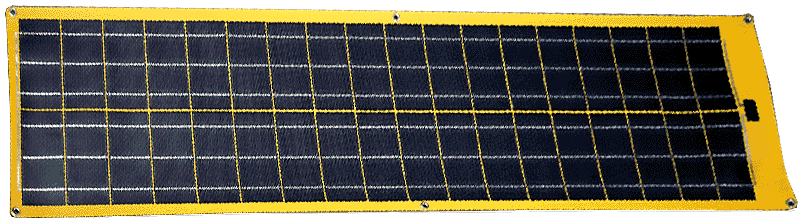

SL-12
SunLINQ SL-12
P3-124
PowerFLEX™ P3-124
SL-25
SunLINQ SL-25

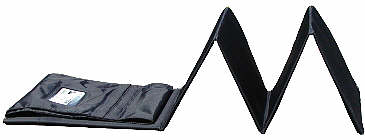

SL-30
SunLINQ SL-30

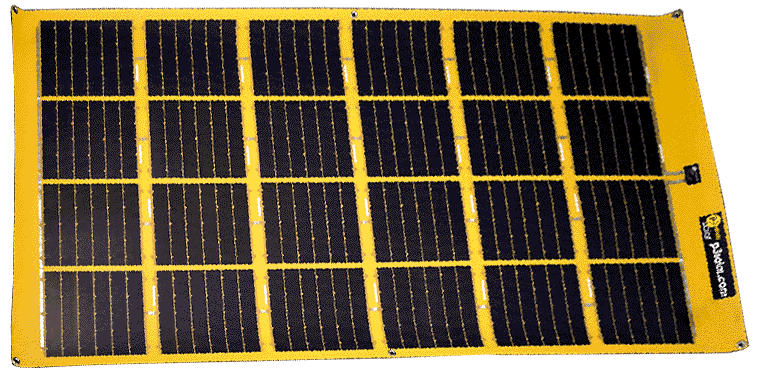

SL-62
SunLINQ SL-62

top of page, Battery Life, SunLINQ™, PowerFLEX™, BullDog™ PowerPak™, CLEARANCE, ORDER
SunLINQ™  Rated
Power
System
Voltage
Operating
Voltage
Max
Current
Open
Circuit
Voltage
Cells Color Ops Temp Size Closed
(in)
Size Open
(in)
Wt Spec
Sheet
Price
us$
USB-mini 2 watts 5v 5v 400mA - 2 Black -40º to 176º

(-40º to 80ºC)

5x9 9x15 4 oz USB
259Kb
59.95
USB-plus 4 watts 5v 5v 800mA - 4 5x9 9x25 6.3 oz 89.95
SL-6.5 6.5 watts 12v 16.5v 300mA 23v 4 6x8
1.3 thick
8x28 9.6 oz - 79.95
SL-12 12 watts 12v 15.0v 800mA 15.6v 8 5x9
.7 thick
17x29 14.4 oz SL-12
74Kb
149.95
SL-25 25 watts 12v 16.5v 1.5 A 26v 8 8x11
.7 thick
22x41 1.7 lbs SL-25
113Kb
319.95
SL-30 30 watts 12v 18.8v 1.5 A 28v 10 9x11
1.2 thick
22x45 1.8 lbs SL-30
82Kb
499.95
SL-62 62 watts 12v 20v 3.1 A 28v 12 9x15
1.4 thick
30x53 3.1 lbs SL-62
62Kb
889.95
24v 40v 1.6 A 56v
P3-124 124 watts 12v 20v 6.2 A 28v 24 9x15
2.8 thick
30x105 6.1 lbs P3-124
60Kb
1579.95
24v 40v 3.2 A 56v
© 2011 Global Solar Technologies Inc. All Rights Reserved
ORDER

5 piece accessory cable set
us$19.95
12v Cigarette Lighter receptacle,
12v Cigarette Lighter plug,
2.5mmID barrel plug adapter,
battery clamps,
8-ft extension cable.
Other Accessories:
P-5 Adapter (2.1mm barrel plug)  us$7.50
P-5 + P-6 Adapter (2.1mm + 2.5 barrel plug)  us$7.50
Y-Adapter (SAE)  us$12.50


top of page, Battery Life, SunLINQ™, PowerFLEX™, BullDog™ PowerPak™, CLEARANCE, ORDER


Global Solar® Technologies
PowerFLEX™  Mil-Spec 810
High Performance Flexible Solar Panels
PowerFLEX

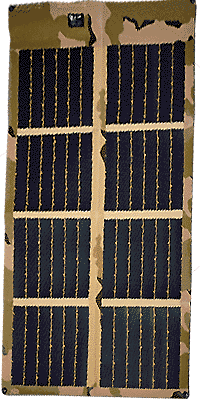

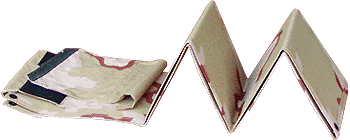

P3-30
PowerFLEX™ P3-30
P3-30
Desert
P3-30
Woodland
PowerFLEX™
(Mil-spec 810)
Rated
Power
System
Voltage
Operating
Voltage
Max
Current
Open
Circuit
Voltage
Cells Color Ops Temp Size Closed
(in)
Size Open
(in)
Wt Spec
Sheet
Price
us$
P3-30 30 watts 12v 18.8v 1.6 A 28v 10 Desert
or
Woodland
-40º to 176º

(-40º to 80ºC)

9x11
1.2 thick
21x44 2.7 lbs P3-30
82Kb
499.95

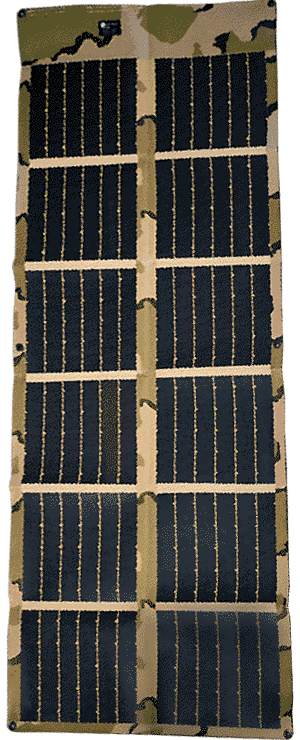

P3-62 62 watts 12v 20v 3.1 A 28v 12 9x15
1.4 thick
32x55 3.5 lbs P3-62
62Kb
889.95
24v 40v 1.6 A 56v

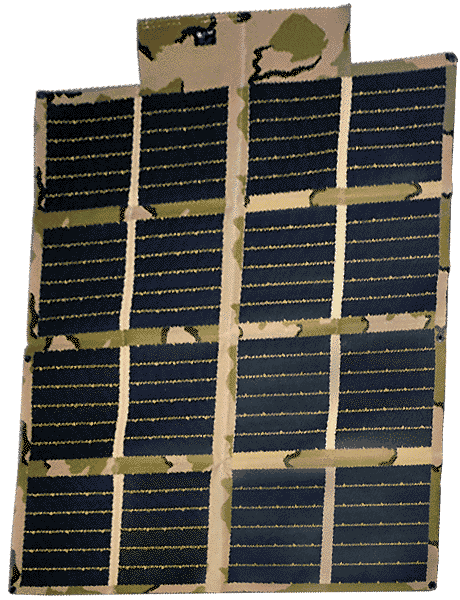

P3-124 124 watts 12v 20v 6.2 A 28v 24 9x15
2.8 thick
30x105 6.1 lbs P3-124
60Kb
1579.95
24v 40v 3.2 A 56v
© 2011 Global Solar Technologies Inc. All Rights Reserved
ORDER
Contact us for further information.
.
P3-124
PowerFLEX™ P3-124

top of page, Battery Life, SunLINQ, PowerFLEX, Bulldog PwrPak, CLEARANCE, ORDER
CLEARANCE

iSun™
iSun
Portable Solar Charger
us$59.95
Limited quantity
use w cameras
use w cell fons

iSun® Specifications
Model no. 04061 (silver)
Wattage: 2.2 watts
Peak Output:  290 mAmps@7.6v
145 mAmps@15.2v
Output: 8.8-11 watt hrs
1.2-1.5 amp-hrs at 7.6v
.6-.73 amp-hrs at 15.2v
Output
Connectors:
cigarette socket cable
2.5mm jack
3.5mm jack
2.1 x 5.5 mm barrel
2.5 x 5.5 mm barrel
2.1 x 5 mm barrel
1.7 x 4 mm barrel
1.4 x 3.5 mm barrel
Nokia fon adptr
Dimensions:  7.25 x 4.5 x 1.25 inches
(184 x 114 x 32 mm)
Weight:  0.68 Lbs ( 311g)
The silver finish iSun™  includes plug accessories that will enable connection to over 90% of all small electronics.  Works in all sunny conditions.

The iSun™ is a convenient way to recharge and run portable electronics far away from any power outlets. Ideal for cell phones, digital cameras, PDA's and GPS's, the iSun™ sucks up the sun's rays to charge things anywhere. Rugged enough to throw in a pack.

Polycrystalline solar panel transforms sunlight into a usable energy source for cell phones, PDAs, handles and GPS's and is ideal to run a GPS, an FRS radio, a portable MP3 or mini-disc player.  It is a perfect power solution for people on the go. Whether to charge a cell phone or PDA while on a business trip, charge a GPS while trekking through the wilderness or to run a MP3 player at the beach, the iSun™ can make it happen.

Selectable 6vDC or 12vDC charging option.

Multiple iSun™ units can be ay daisy-chained together for more power.




top of page, Battery Life, SunLINQ™, PowerFLEX™, BullDog™ PowerPak™, CLEARANCE, ORDER
CLEARANCE

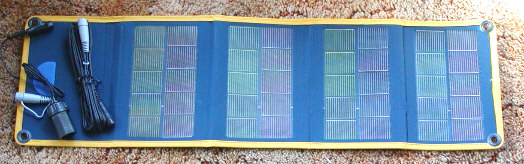

eXponent™
eXponent
5watt  Flexible Portable Solar Panel
us$49.95
Limited quantity

eXponent™

The eXponent is a convenient way to recharge and run portable electronics far away from any power outlets. Ideal for cell phones, digital cameras, PDA's, GPS's, rechargeable batteries, MP3's and more, eXponentsucks up the sun's rays to charge things anywhere.  Flexible, folds up for storage and rugged enough to throw in a pack.

Durable CIGS solar cells, a material proven to be very stable and long-lived, even when subjected to the rigors of extreme radiation in space, transform sunlight into a usable energy source for cell phones, PDAs, handles and GPS's and is ideal to run a GPS, an FRS radio, a portable MP3 or mini-disc player.  It is a perfect power solution for people on the go. Whether to charge a cell phone or PDA while on a business trip, charge a GPS while trekking through the wilderness or to run a MP3 player at the beach, eXponent can make it happen.

  • 12V charging
  • Cigarette lighter socket output
  • Water repellant
  • Tie down grommets
  • Works in all sunny conditions
Coleman eXponent™ Specifications
Rated Power 5 watts
System Voltage 12v
Operating Voltage 16.5v
Max. Current 0.3 amp
Open Circuit Voltage 23v
Number Cell Panels 4
Color BLU / BLK
Operating Temp.  -40º to 176º
(-40º to 80ºC)
Dimensions OPEN  28.4 x 8.2 inches
(721 x 208 mm)
Dimensions FOLDED 5.7 x 8.2 x 1.3 inches
(145 x 208 x 33 mm)
Unit Weight (each) 0.6Lbs (.27Kg)
© 2005 Global Solar Technologies Inc. All Rights Reserved

top of page, Battery Life, SunLINQ™, PowerFLEX™, BullDog™ PowerPak™, CLEARANCE, ORDER
Bulldog PowerPak™ BullDog™ PowerPak™
Portable Power Systems

110volts in a Briefcase
Any Time, Any Place

Solar/DC/AC Rechargeable
220vAC available

MouseHound™ custom PowerPaks
Complete rechargeable portable AC power systems ideal for all types of professional, recreational, outdoor, marine, RV, medical, or other mobile applications.
.
BullDog™ PowerPup™
BullDog™ PowerPup™
7 AmpHr
Lightweight Portable Power System
BullDog™ PowerPak™
BullDog™ PowerPak™
18AmpHr
Portable Power System
BullDog™ PowerPak™ Huskie
BullDog™ PowerPak™ Huskie
34AmpHr
Heavy Duty Portable Power System
.
custom  BullDog™ PowerPak™systems
built to specification, and
.
BullDog™ PowerPak™ MouseHound™ battery packs
Safe NiMH rechargeable custom battery packs, specify vDC/AmpHr.
.
CLICK images for Specifications

top of page, Battery Life, SunLINQ™, PowerFLEX™, BullDog™ PowerPak™, CLEARANCE, ORDER

For Further Information, Email  or Call 440-888-4749 (M-F 9-5 ET)
Order Form..
Also see Travel Accessories, Portable PowerVerters, Airline Carry On Rules
