Bulldog
PowerPak™
Portable
Power
Systems |
|
110volts in a Briefcase
Any Time, Any Place
.
Solar/DC/AC
Rechargeable
* 220vAC available |
 |
|
 |

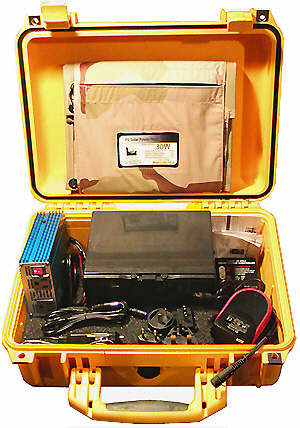

Bulldog PowerPak™ HUSKIE
Heavy Duty Portable Power System
(34ampHr battery, 30watt panel)
us$1,039.95 |
Bulldog PowerPak™ -Attache
Portable Power System
(18ampHr battery, 20watt panel)
us$799.95 |
Bulldog PowerPup™
Lightweight Portable Power System
(7ampHr battery, 5watt panel)
us$399.95 |
.
| Bulldog PowerPak™ systems are complete rechargeable portable
AC power systems ideal for all types of professional, recreational, outdoor,
marine, RV, medical, or other mobile applications.
Capable of powering almost any portable AC powered electronic equipment
or low ampere tools, it is a perfect solution for portable power needs.
Systems include all components needed to provide and maintain portable
AC power:
-
110v/60Hz fused sockets (220v/50Hz available)
-
150 to 375 watt DC to AC Inverters
-
12v DC sealed gel pak battery
-
12v DC cigarette lighter recharge plug
-
90v-240v universal AC recharge adapter
-
High wattage flexible solar panels (except
YardDog™ models)
-
Heavy duty watertight case
TrippLite PowerVerter® DC to AC Inverter gives direct
access to 110v/60Hz AC electricity from an internal sealed gel pack batteries.
Inverter lets you use portable electronics, household appliances or office
equipment on the road. Continuous computer grade 110 volt AC power
for sensitive computers and electronics ensures equipment performs at peak.
Alternative 375 watt international Schuko 220v/50Hz AC power available
by request.

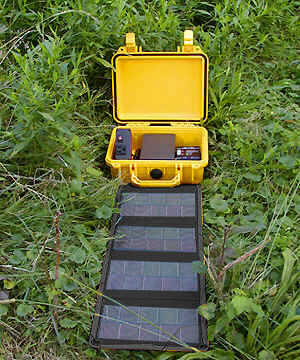

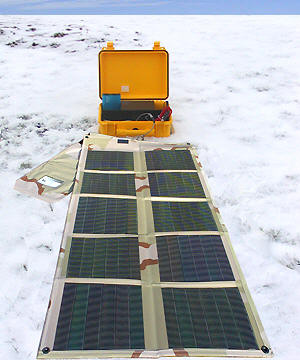

PowerFLEX™ durable, lightweight, flexible solar panel is designed
to maintain and charge 12 volt DC battery and power most portable electronics.
Panels fold up for easy storage in case.
Durable: made of extremely flexible
and durable CIGS solar cells, a material proven to be very stable and long-lived,
even when subjected to the rigors of extreme radiation in space.
Offers a higher efficiency than other
flexible solar cell technologies.
Works under cloudy / rainy skies.
Solar Will flex to fit most curved surfaces.
Weatherproof and UV resistant.
Systems can power portable AC electronic equipment for 3-6 hours without
recharge depending upon Amps drawn by the portable equipment. With
simultaneous recharge from the solar panel or from a 12v DC cigarette lighter
socket in a car, truck, boat, or RV, the system can run most small portable
AC equipment drawing up to 2 Amps almost indefinitely.
See Battery Life for more specific information.
Low Battery alarm alerts you to low voltage conditions, with automatic
shutdown if needed, 375watt inverter includes built-in cooling fan.
System can be recharged from solar panel, 12v DC vehicle systems using
the cigarette lighter adaptor, or at home or office from a standard AC
socket, built in charge controller insures the battery is never overcharged.

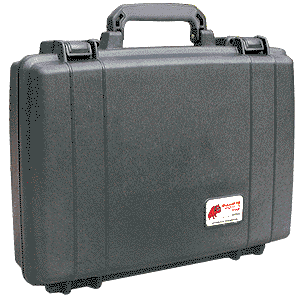

Everything is built into a super strong Pelican watertight,
dust proof and corrosion proof carrying case (except Mini-PowerPup™).
Bulldog PowerPak™ YardDog™systems
are complete rechargeable portable AC power systems, but
without included
solar panels.
YardDog™ systems are suitable
for all types of outdoor, gardening, marine, medical or mobile applications
for which battery recharge is easily accomplished via only AC power.
Available separately, Solar panels and 12vDC
cable are compatible with YardDog™ systems.
YardDog™ Mini-PowerPup™ comes in a rip-stop nylon carry sack
with shoulder strap. |
Bulldog PowerPak™ -Huskie |

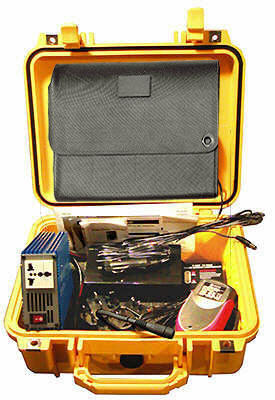

Bulldog PowerPup™ +
220vAC International |
YardDog™ Mini-PowerPup™ |
|
top of page, Bulldog,
Specs,
Custom,
Mousehound,
Battery
Life,
ORDER
| Bulldog PowerPak™
system |
Battery
(AmpHr) |
Output
(Watts)¹ |
Output
(volts) |
PowerFLEX™
Solar Panel |
Buoyancy |
Case Size
(inches) |
Wt
(Lbs) |
Price
us$ |
| YardDog™ Mini-PowerPup™ |
7 |
150 |
(1) 110vAC |
(none) AC only |
- |
5 x 4.5 x 8 |
9 |
$139.95 |
| YardDog™ PowerPup™ |
7 |
150 |
(1) 110vAC |
(none) AC only |
- |
10.6 x 9.7 x 4.9 |
12.5 |
$189.95 |
| YardDog™ |
18 |
375 |
(2) 110vAC² |
(none) AC only |
- |
13.4 x 11.6 x 6 |
23 |
$379.95 |
| YardDog™ -Attache |
18 |
375 |
(2) 110vAC² |
(none) AC only |
up to 30 Lbs |
16.7 x 13 x 4.4 |
23 |
$399.95 |
| YardDog™ -Huskie (compact) |
34 |
375 |
(2) 110vAC² |
(none) AC only |
- |
13.4 x 11.6 x 6 |
37 |
$459.95 |
| YardDog™ -Huskie |
34 |
375 |
(2) 110vAC² |
(none) AC only |
- |
16 x 13 x 6.9 |
38 |
$459.95 |

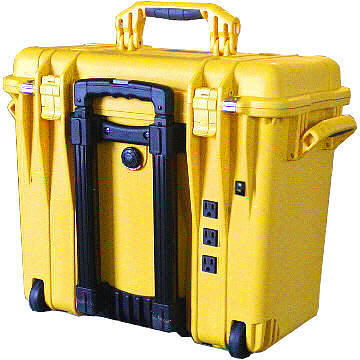

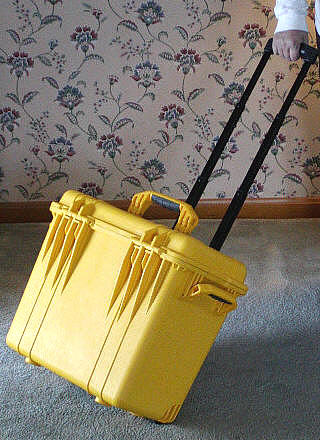

| YardDog™ -BigDog (rolling
case) |
75 |
600 |
(3) 110vAC |
(none) AC only |
- |
22 x 14 x 9 |
74 |
$699.95 |
| . |
| Bulldog PowerPup™ |
7 |
150 |
(1) 110vAC |
SL-6.5 |
- |
10.6 x 9.7 x 4.9 |
13 |
$399.95 |
| Bulldog PowerPup™
+ |
7 |
150 |
(1) 110vAC |
SL-12 |
up to 20 Lbs |
13.4 x 11.6 x 6 |
14 |
$539.95 |
| Bulldog PowerPup™
++ |
7 |
150 |
(1) 110vAC |
SL-25 |
up to 20 Lbs |
13.4 x 11.6 x 6 |
14 |
$719.95 |
| Bulldog PowerPak™ |
18 |
375 |
(2) 110vAC² |
SL-25 |
- |
13.4 x 11.6 x 6 |
25 |
$819.95 |
| Bulldog PowerPak™
-Attache |
18 |
375 |
(2) 110vAC² |
SL-25 |
up to 30 Lbs |
16.7 x 13 x 4.4 |
25 |
$839.95 |
| Bulldog PowerPak™
-Huskie |
34 |
375 |
(2) 110vAC² |
P3-30 |
- |
16 x 13 x 6.9 |
40 |
$1,139.95 |
| Bulldog PowerPak™
-BigDog (rolling case) |
75 |
600 |
(3) 110vAC |
P3-55 |
- |
22 x 14 x 9 |
77 |
$1,949.95 |
| . |
| Custom
Bulldog PowerPak™ |
7 to 34 |
375 |
AC²/DC |
any |
varies |
varies |
varies |
varies |
| Bulldog PowerPak™ Mousehound™ |
open |
open |
any DC |
any |
- |
varies |
varies |
varies |
Input: 16-23v DC (solar);
12-14v DC (auto); 90-240vAC (home/office)
Operating Temp (Battery):
40º to 140ºF (5º to 60ºC)
Battery power available at or below freezing is severely
reduced. While solar panels will still provide power down to -40ºF
(-40ºC), amperes available will be less than required to operate most
electronic equipment. Also note that most electronic equipment fails
to operate properly below 40ºF (5ºC), consult equipment manufacturer
for details.
¹ 150watts suitable for equipment using up to 2amps.
375watts suitable for equipment using up to 4amps. 600watts suitable
for equipment using up to 7amps.
See Battery Life for more specific
information.
² (1) 10amp Schuko, 220vAC/50Hz
available.
top of page, Bulldog,
Specs,
Custom,
Mousehound,
Battery
Life,
ORDER
custom Bulldog PowerPak™
systems
(made to specification)
Special direct DC output versions, fully universal
international 110/220vAC versions, timer control, special input, vDC/AC
only, multiple solar panels, 34AmpHr+ battery power and other specialty
custom versions available.
.
Contact
us for
further information.
top of page, Bulldog,
Specs,
Custom,
Mousehound,
Battery
Life,
ORDER
 EEEEEEK
!!!
.

.

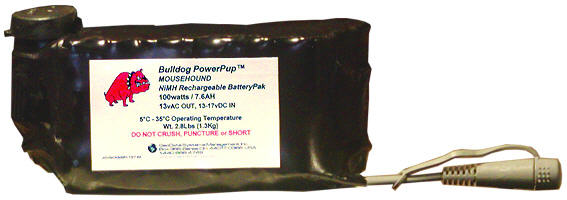

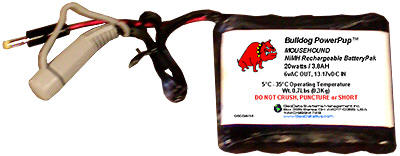

custom Bulldog
PowerPak™ Mousehound™ battery
packs.
(made to specification)
.
Safe NiMH rechargeable,
durable, long-life battery packs for specific DC power requirements.
Recharge by solar, 12vDC,
or 110/220vAC adapter.
.
Specify equipmentto
be supported, volts DC and AmpHrs needed.
.
Contact
us for
further information. |
